Pertici CTE500 Double Mitre Saw (Full CNC)

Efficient Aluminium Cutting

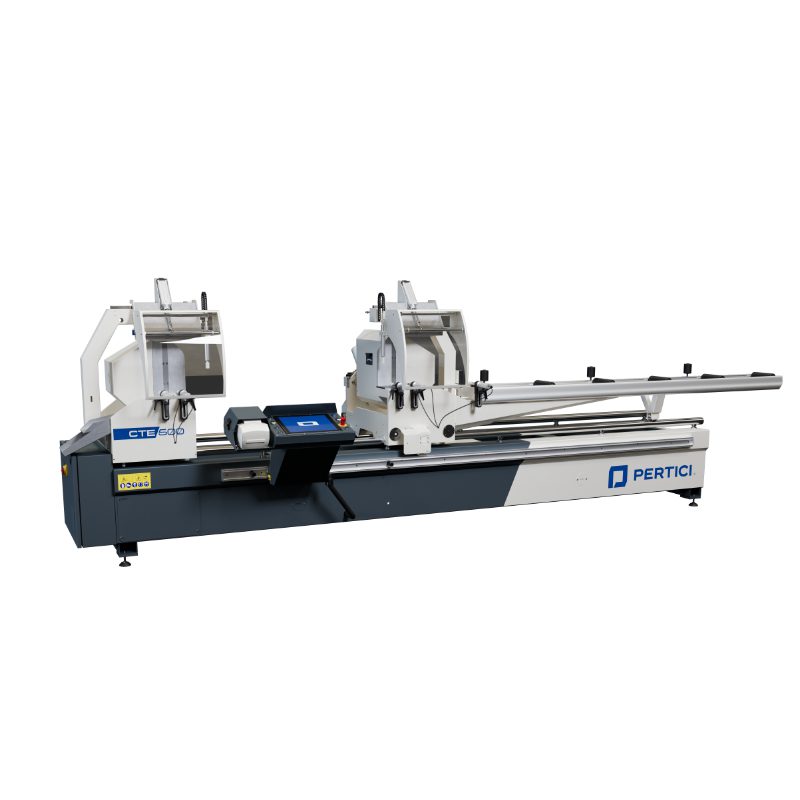

The Pertici CTE500 Double Mitre Saw is the ultimate in quick & efficient Aluminium Extrusion cutting. Designed and made in Italy by Pertici, the CTE500 will provide ultimate accuracy and cut quality with its full CNC 3 Axis operation.

Learn More →

Key Features:

  • Full CNC Blade Angle Control
  • 2 x 500mm Saw Blades
  • Touch Screen Controller
  • Accepts Cutting Lists
  • Optional Feed & Cut Mode
  • Made in Italy
Enquire Now


  • This field is for validation purposes and should be left unchanged.


The two 500mm Saw Blades are mounted on 2.2KW Induction motors and are able to produce large capacity mitres from 45º internal to 20º external via the touchscreen controller. Three adjustable Pneumatic Clamps are mounted on each cutting head to ensures the material is held in place securely for higher accuracy cutting.

The Cutting Length, Blade Angle and Blade stroke is controlled via a 15.4″ Touchscreen running in a Windows CE environment. Pertici has designed the software to give ease of use for the operator so they can get cutting without any fuss. Cutting list can be imported to the controller which allows optimisation of the cutting cycle, reduce mistakes and reduce loading/unloading times.

  • 2 x 500mm Saw Blades
  • CNC Tilting Cutting heads (45º internal to 20º External)
  • Mobile R/H with Auto-positioning (30 m/min)
  • 15.4″ Touchscreen Controller running Windows CE
  • 6 x Pneumatic Clamps (2 x horizontal, 1 x Vertical on each head)
  • Accepts Cutting lists via USB/Ethernet
  • Cutting List Optimisation
  • Optional Label Printer
  • Optional Feed & Cut mode (repetitive cutting)
  • Spray-Mist Lubrication
  • 2 x 2.2kw sealed induction motors
  • Available in 4.1m, 5.1m & 6.1m models


Motor KW2.2KW x 2
Volt/Freq/Amp415v (3A+E) /50/12
Blade Diameter / Bore500mm x 2 / 30mm
Spindle RPM3000 RPM
Air Consumption70 Lt/minute
Air Pressure6 Bar
Air ConnectorNitto Male
Table Height (mm)
Machine Dimensions (mm)
(Width x Depth x Height)
Packing Dimensions (cm)
(Length x Width x Height)
Net Weight (KG)
Gross Weight (KG)

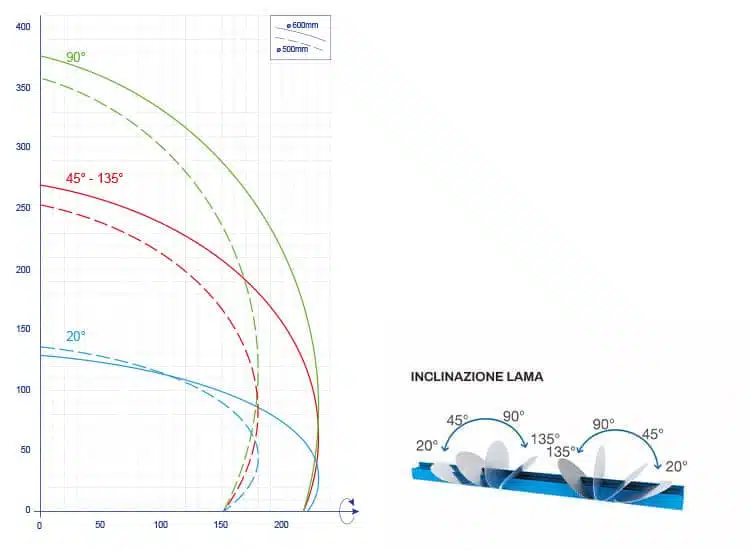

Cutting Chart
