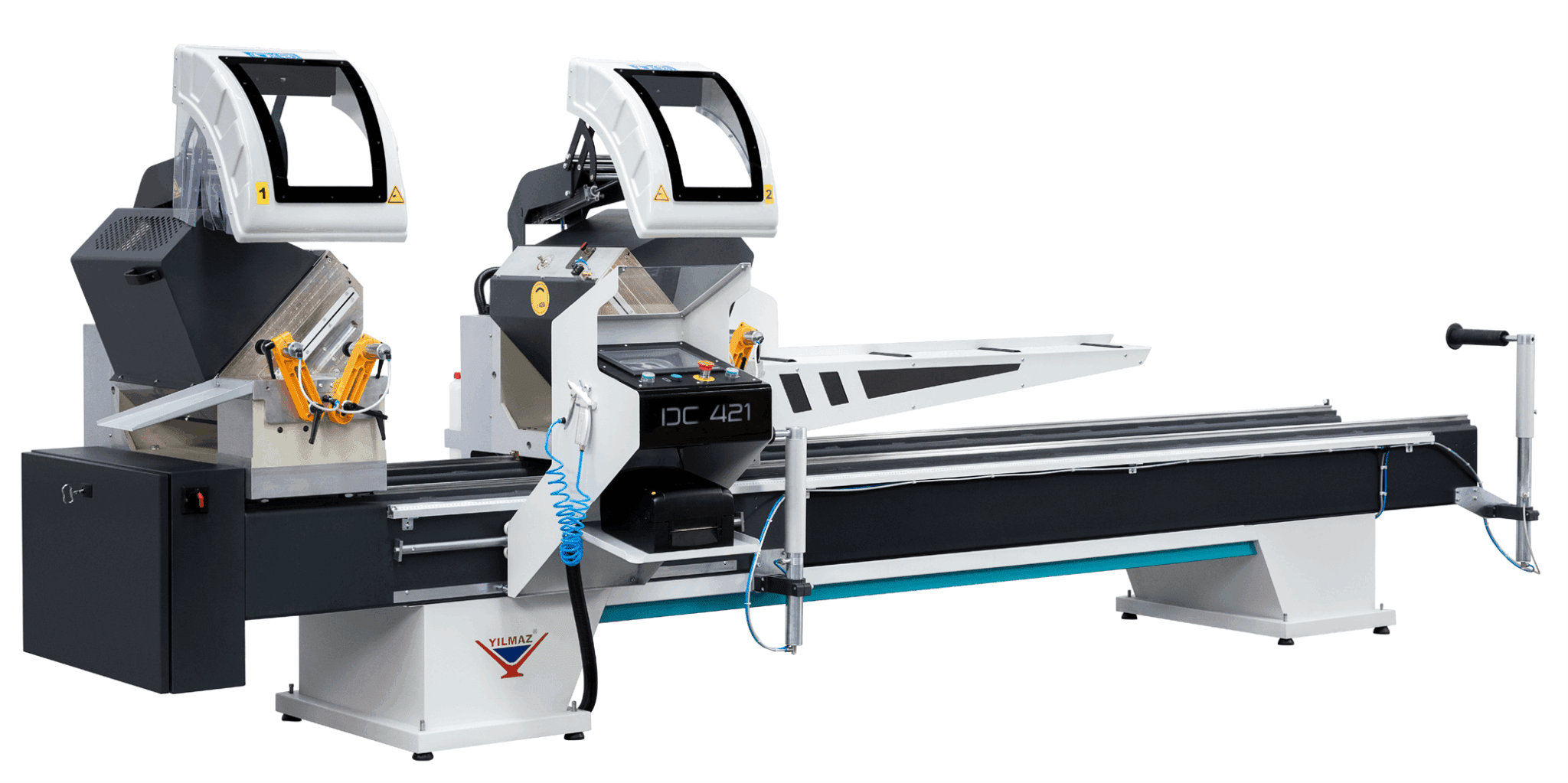

DC421PS Aluminium Double Mitre Saw (New 2022 Model)
DC421PS Aluminium Double Mitre Saw (New 2022 Model) - Image 2
DC421PS Aluminium Double Mitre Saw (New 2022 Model) - Image 3
DC421PS Aluminium Double Mitre Saw (New 2022 Model) - Image 4
DC421PS Aluminium Double Mitre Saw (New 2022 Model) - Image 5
DC421PS Aluminium Double Mitre Saw (New 2022 Model) - Image 6
DC421PS Aluminium Double Mitre Saw (New 2022 Model) - Image 7

DC421PS Aluminium Double Mitre Saw (New 2022 Model)

Be more productive.  No need to hire more staff just invest in the right machine.  The DC421 machines are highly efficient Aluminium and uPVC cutting saw with all the features of a much more expensive machine. The DC421 is made in Europe and comes with a 12 month warranty.  The DC421 has one of the lowest running costs of any aluminium machine on the market.  Spare parts are fully available from Luna Machinery.


DC421PBS version shown in video

Learn More →

Key Features:

  • Twin 420mm Saw Blades
  • Motorised Mobile Head
  • Touch Screen Controller
  • Pneumatic Tilting Heads 90º-45º
  • Adjustable Feed Rate
  • Hydro Pneumatic Blade Feed
Enquire Now

Enquire

  • This field is for validation purposes and should be left unchanged.
SKU: DC421PSAluminiumDoubleMitreSaw Categories: , ,

Description

The DC421 Double Mitre Saw has been sold all over Europe and throughout the world.  AMS has offered this machine to the Australian market for a long time.   Several companies in Australia have realised the possibilities of the DC421 and have committed to this fantastic machine.

The 2022 Model includes a larger colour touchscreen controller, mechanical improvements and a new redesign!

Features include:

  • Twin 420mm Blades
  • 6.0HP total cutting power
  • Two hand safety operation
  • Pneumatic tilting heads 90° – 45°
  • Hydro-Pneumatic blade feed
  • 2 x pneumatic auto profile supports
  • Adjustable feed rate
  • Cut length 200mm – 4160mm
  • Large cutting capacity
  • Pneumatic clamping
  • Spray-Mist blade lubricator
  • Conveyor attached to right head
  • Pneumatic safety guard for both heads

DC421PS Features:

  • Industrial Touch Screen Controller
  • Motorised mobile Cutting Head
  • Accurate to +/- 0.1mm
  • Programmable, up to 999 cutting operations
  • Automatic Feed & Cut Mode (ideal for corner stakes)
  • Automatic Angle Tilting @ 90 and 45 Degrees
  • Software able to extend maximum cut length to over 10,000mm.

Technical

DC421PS/PBS
Motor KW2.2 KW x 2
Volt/Freq/Amp415v (3A+E) /50/16
Blade Diameter / Bore420mm x 2 / 30mm
Spindle RPM3000 RPM
Air Consumption57 Lt/minute
Air Pressure6 Bar
Air ConnectorNitto Male
Table Height (mm)900mm
Machine Dimensions (mm)
(Width x Depth x Height)		4600 x 1000 x 1500mm
Packing Dimensions (cm)
(Length x Width x Height)		470 x 110 x 165cm
Net Weight (KG)930kg
Gross Weight (KG)1180kg

Cutting Chart
