Description
CNC Machining for Aluminium & PVC Profiles

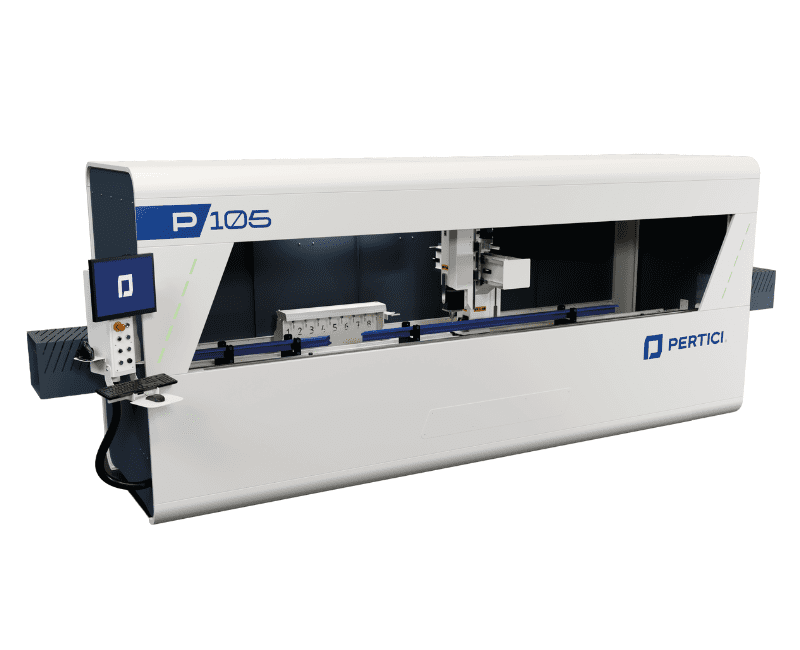

The Pertici P105 is a high-performance 4-axis CNC machining centre designed for precision routing, milling, drilling, tapping, threading and end-milling operations on aluminium, uPVC, and light gauge steel profiles.
This advanced 4-axis CNC combines longer profile capacity, high-speed machining and intuitive programming in one system. Whether you are fabricating framing systems, curtain walls, louvre blades or custom aluminium profiles, the P105 delivers faster output with fewer setups and less manual handling.
Ideal for window and door manufacturers, façade systems and general aluminium fabrication looking to increase productivity without sacrificing accuracy, the P105 is built for workshops that need more capacity, more speed and more control without added complexity.
If your workshop is scaling up and you are ready to handle more complex or high-volume work, the Pertici P105 is the machine that can take you there.
Why Choose the Pertici P105?
Versatility and capacity
- All-in-one machining centre engineered for precision routing, drilling, milling, tapping, threading and end milling
- Equipped with 4 fully controlled CNC axes (X, Y, Z, A) the P105 for processing up to three faces in a single setup, or all 6 faces in a two-step process.

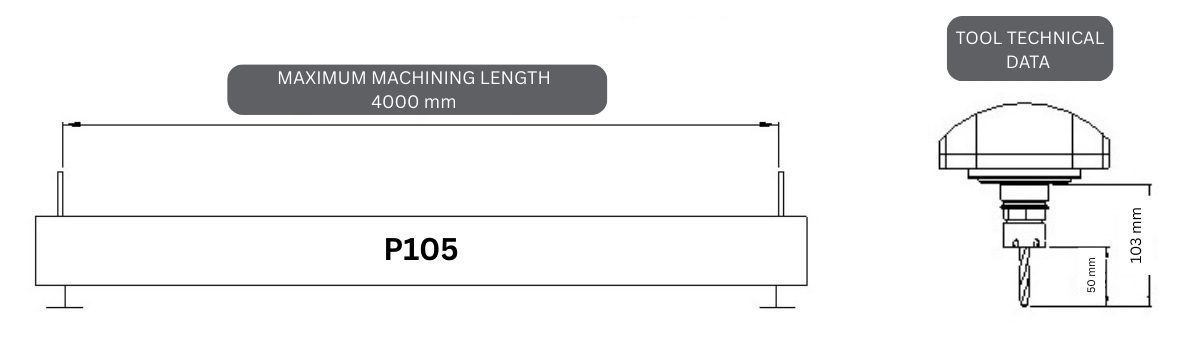

- 4000mm working length (up to 8000mm in a two-steps) so you can handle longer profiles in fewer setups

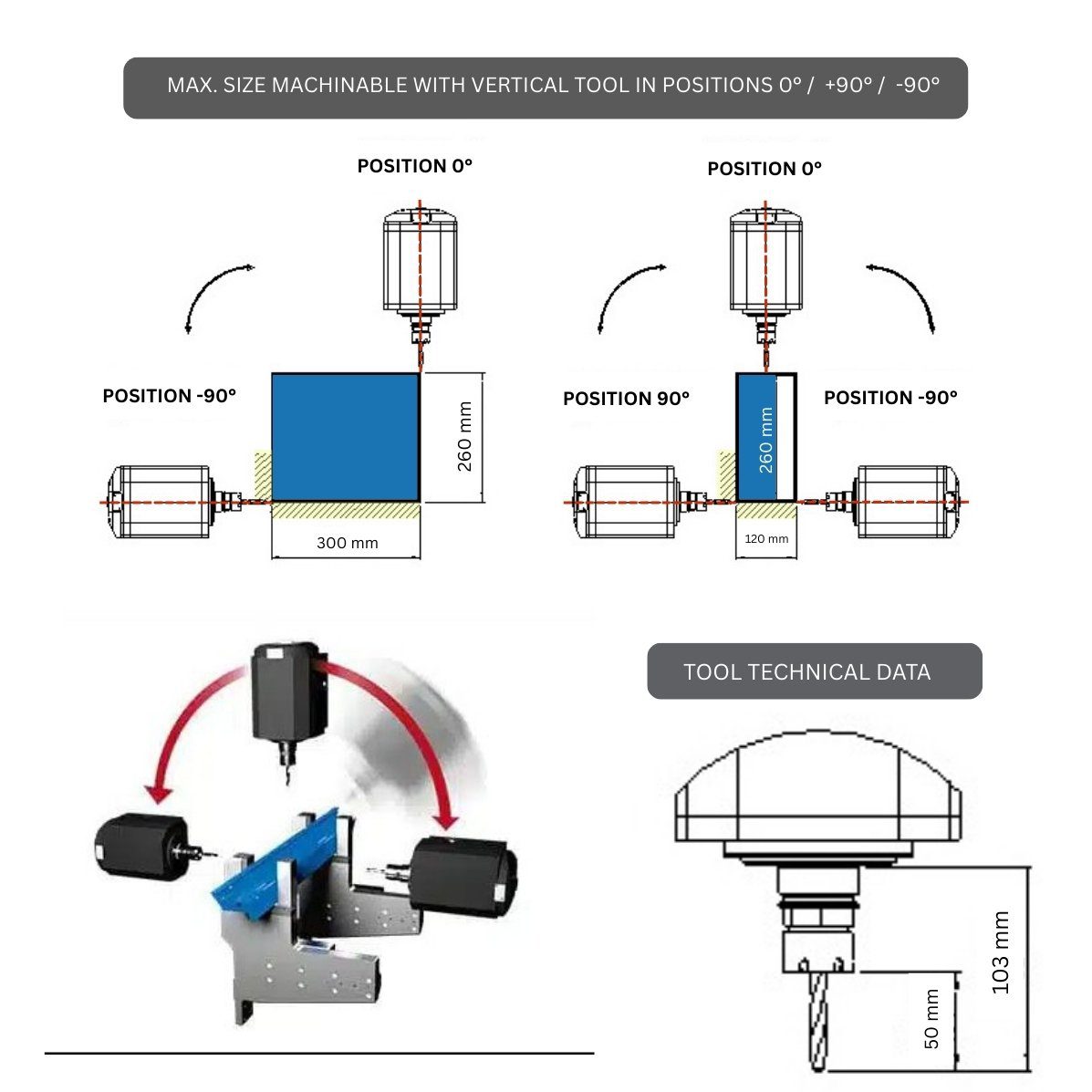

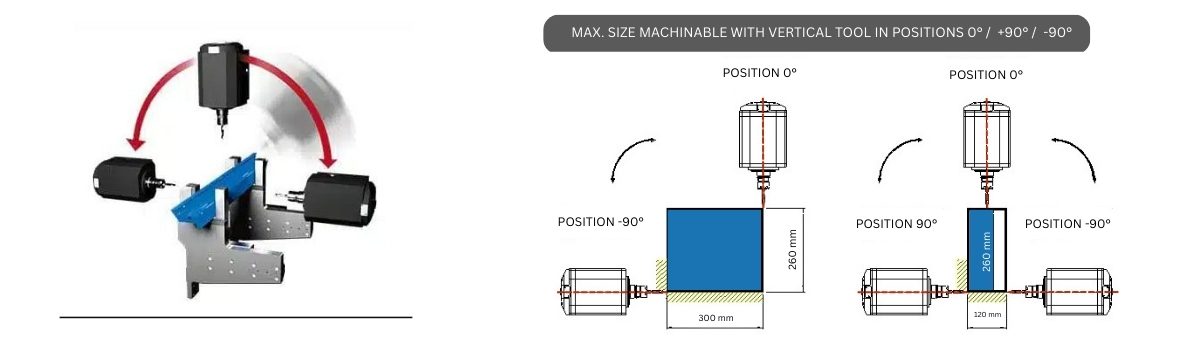

- Profile clamping support of up to 300mm (width) and 260mm (height) provides gentle securing of larger workpieces
- The powerful 7 kW electrospindle (18,000 RPM) with HSK-F50 tool holder enables machining at any angle from 0° to 180°, delivering exceptional flexibility for complex profiles
Efficiency and accuracy
- 8-position tool magazine and automatic tool changer for fast and efficient tool changes
- High-speed X-axis movement (90 m/min travel speed) shortens job cycles and boost daily output
- 120mm disc milling cutter for easy rebating (end milling) on the ends of the profile
- Fully motorised automatic positioning clamps improves accuracy, reduce manual handling, and speed-up setup times
Safety and easy operation
- Easy-to-use PCAM (CAD/CAM) 3D software enhances repeatability, reduces setup times, and enables faster job turnarounds, especially for businesses processing multiple profile variations
- Built-in collision avoidance system for maximising safety and efficient operation
- Fully enclosed cabin with pneumatic safety door provides excellent operator protection while maintaining a compact footprint and easy access for loading and unloading.
Applications
The Pertici P105 is ideal for:
- Aluminium window and door systems
- Curtain wall and façade profiles
- Louvre and shading systems
- General aluminium and uPVC fabrication
- Light guage steel profile machining (up to 2 mm)
If you’re looking for a step up from entry-level CNC routing with longer machining capacity, faster cycle times and proven Italian engineering, the P105 delivers a powerful balance of performance, reliability and value — backed by local Australian support by the AMS Machinery team.
Contact us today to arrange a demonstration or discuss whether the P105 is the right fit for your production requirements.
